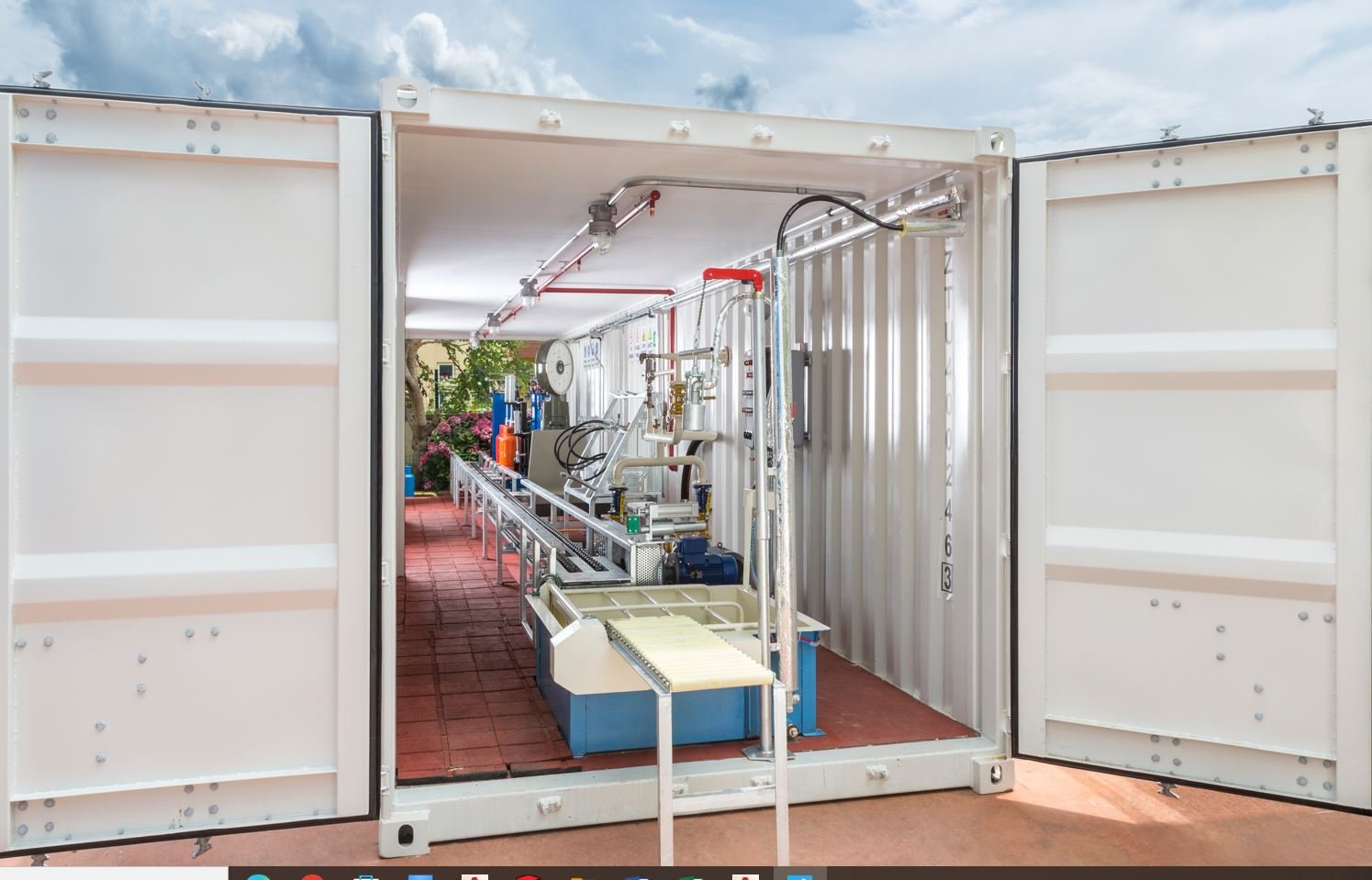

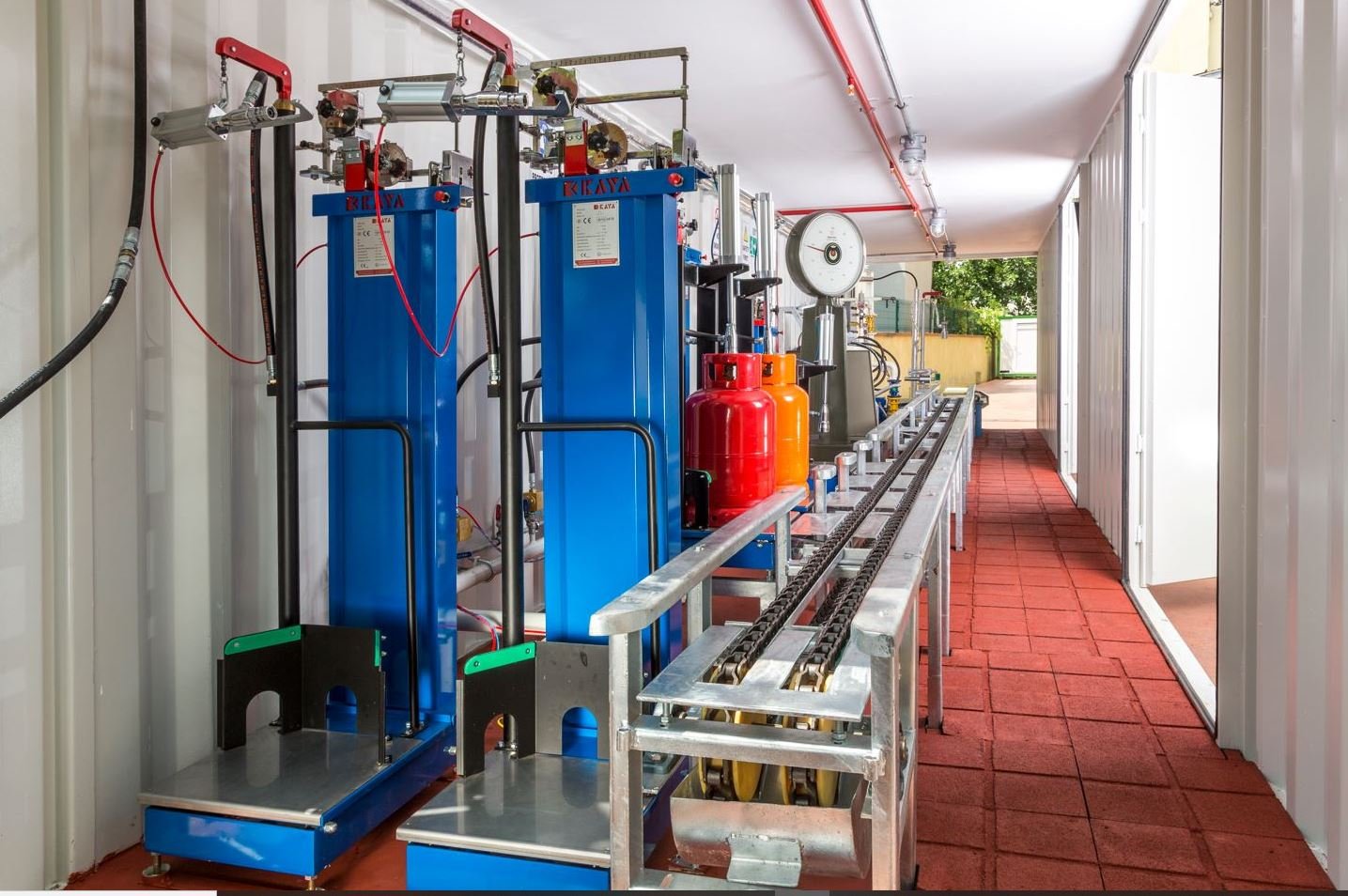

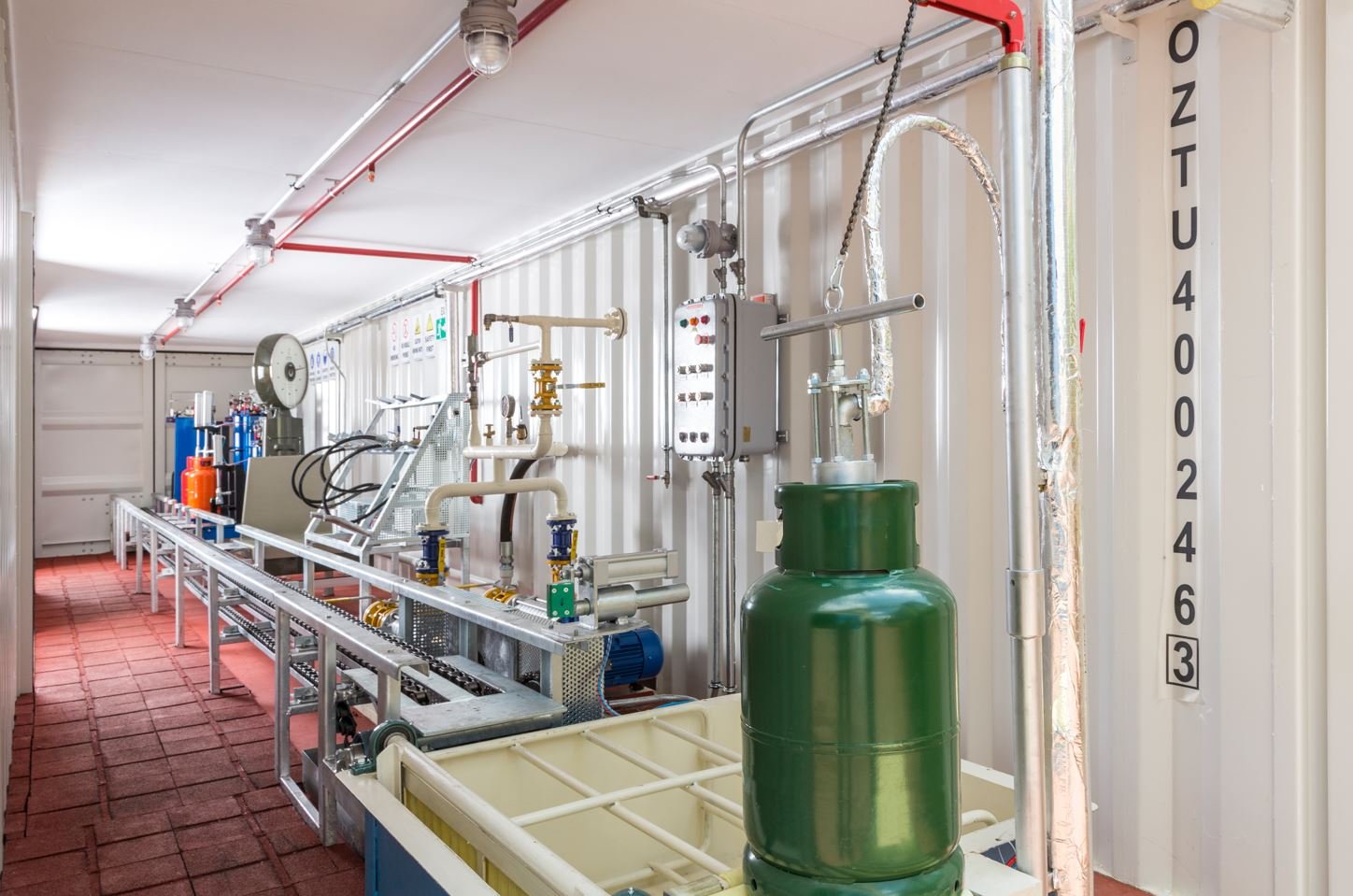

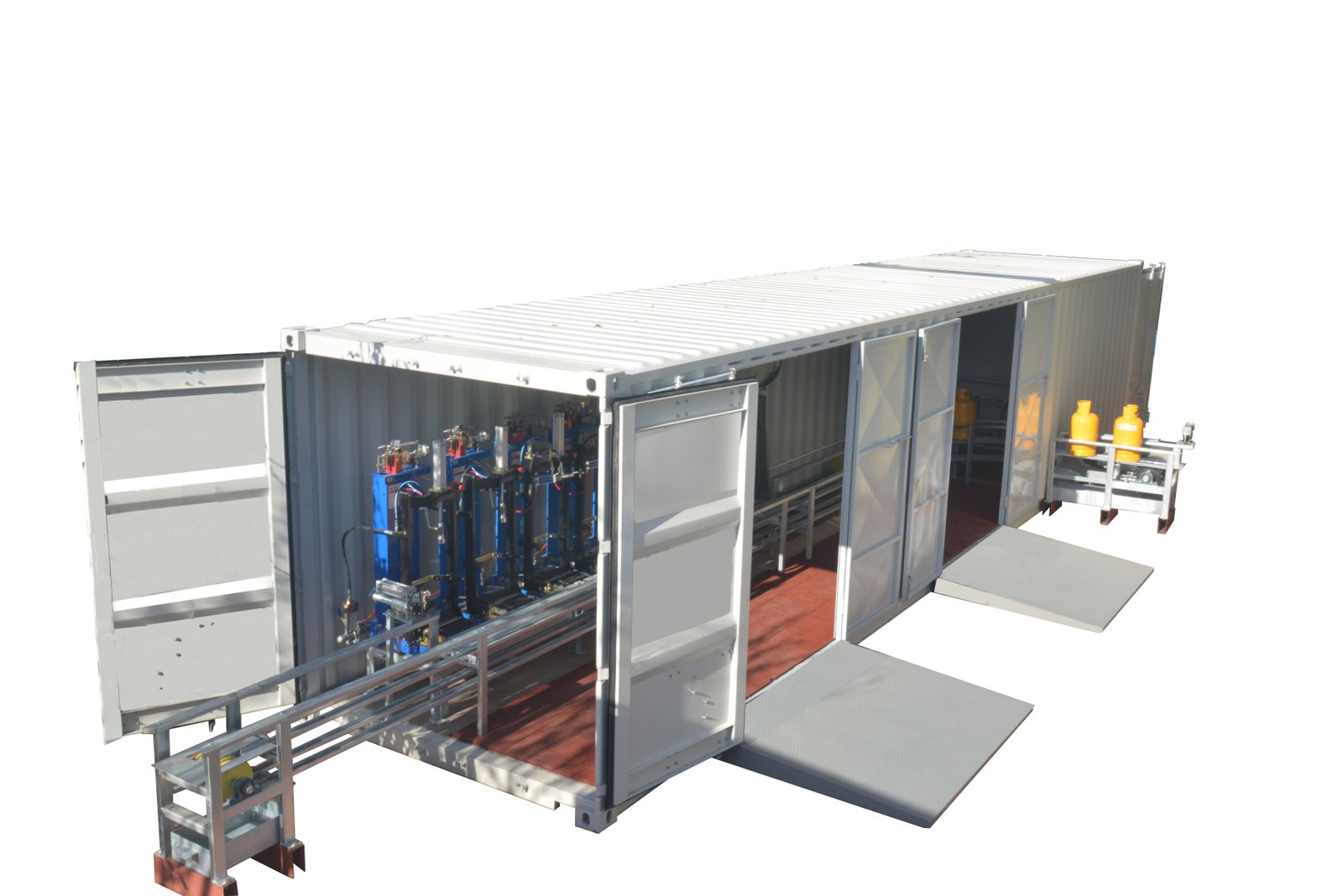

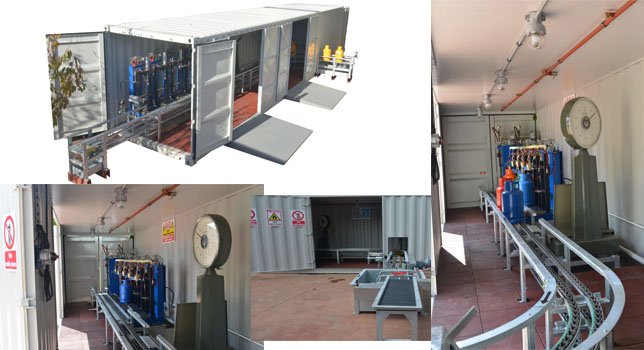

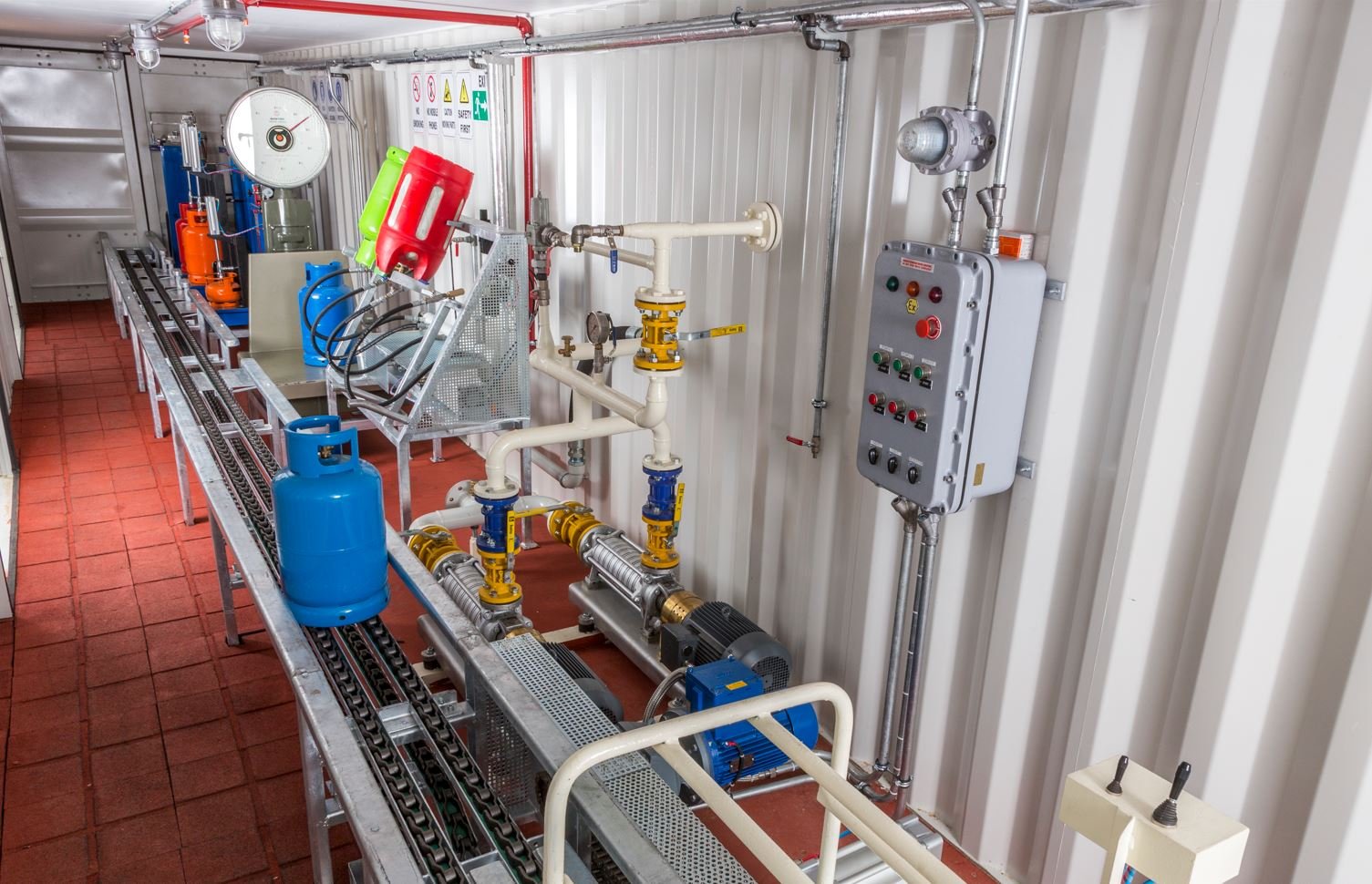

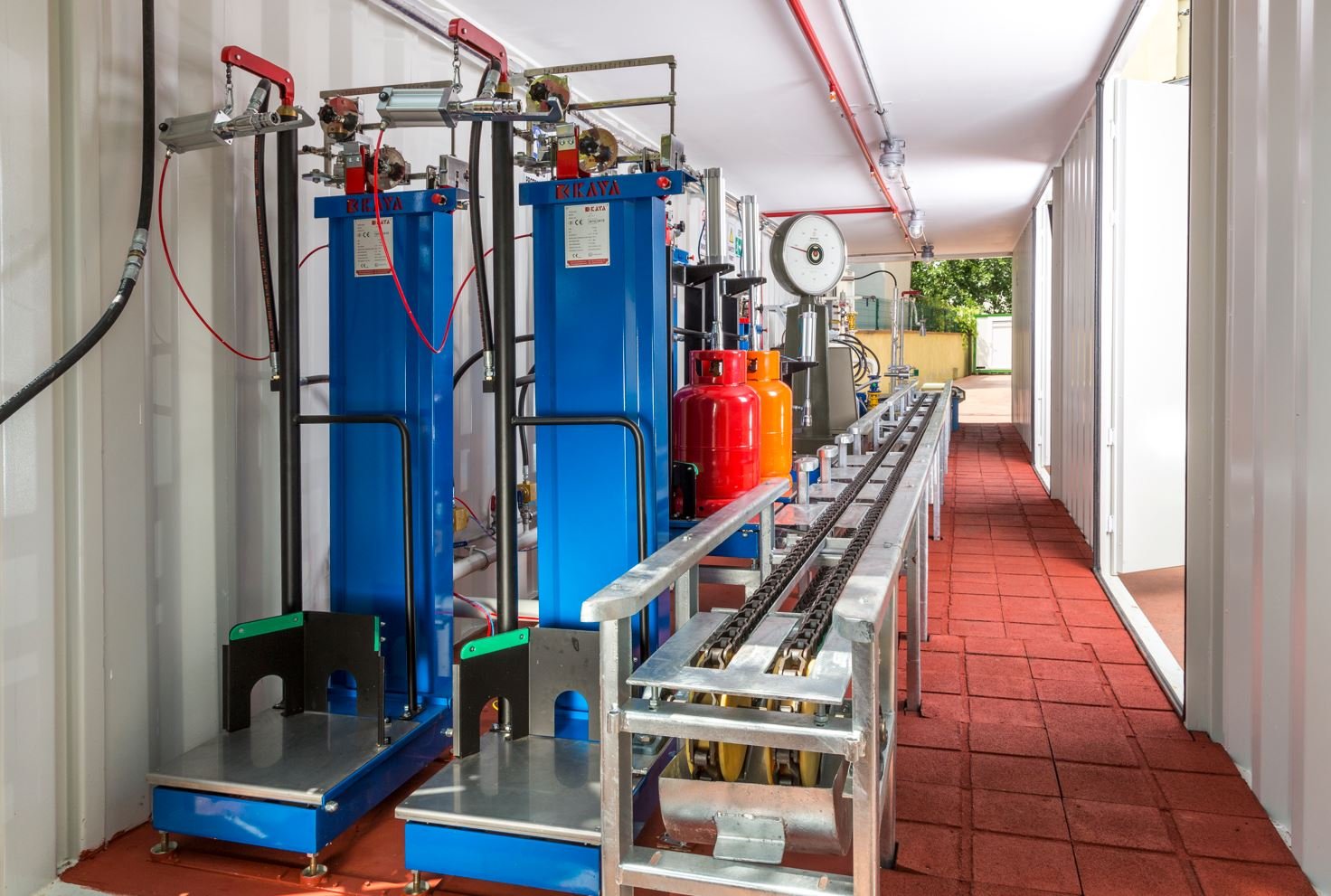

Container Filling

   The products of KAYA companies for container and compact filling plants are made according to the customer specification according to the relevant application purpose and assembled in the factory ready for connection. Taking into account the relevant country-specific regulations, a combination of, inter alia, a cylinder filling plant with the associated discharge unit and LPG dispenser or the corresponding complete mobile cylinder filling plant is possible.

• Small, flexible mobile and prefabricated plants – plug and play
• Ideal solution when entering and testing new markets
• Ideal filling solution when rebuilding/renovating existing facilities
• Includes KAYA Brand fully tested standard filling equipment
• Filling capacity of up to 450 cylinders per hour per container
• Complete filling facility (can also include storage room, entrance door and LPG tanks)
• Flexible solution and arrangement according to customer needs
• 20' and 40' containers according to actual equipment needs

• business interests

• Easy installation in the field
• Low power consumption
• Minimum civil works and engineering
• Easy and safe to use
• Simple layout and maximum security
• The switchboard can be made independent of an external power source (eg in rural areas)
• Ready for integration into the filling system network
• Ready to communicate with PC for data collection
• Includes all necessary equipment for safe and reliable filling of gas cylinders
• Capacity increase possible

safety:

• Ex marking according to the ATEX Directive and applicable EN standards: II 2G Ex h IIA T4 Gb CE logo EX logo
• All equipment and machinery are designed for operation in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 80079-36:2016.
• All equipment and machinery are designed and certified according to a certified ISO:9001 quality management system; moreover, it is designed according to all relevant requirements set out in the applicable EU Directives.
