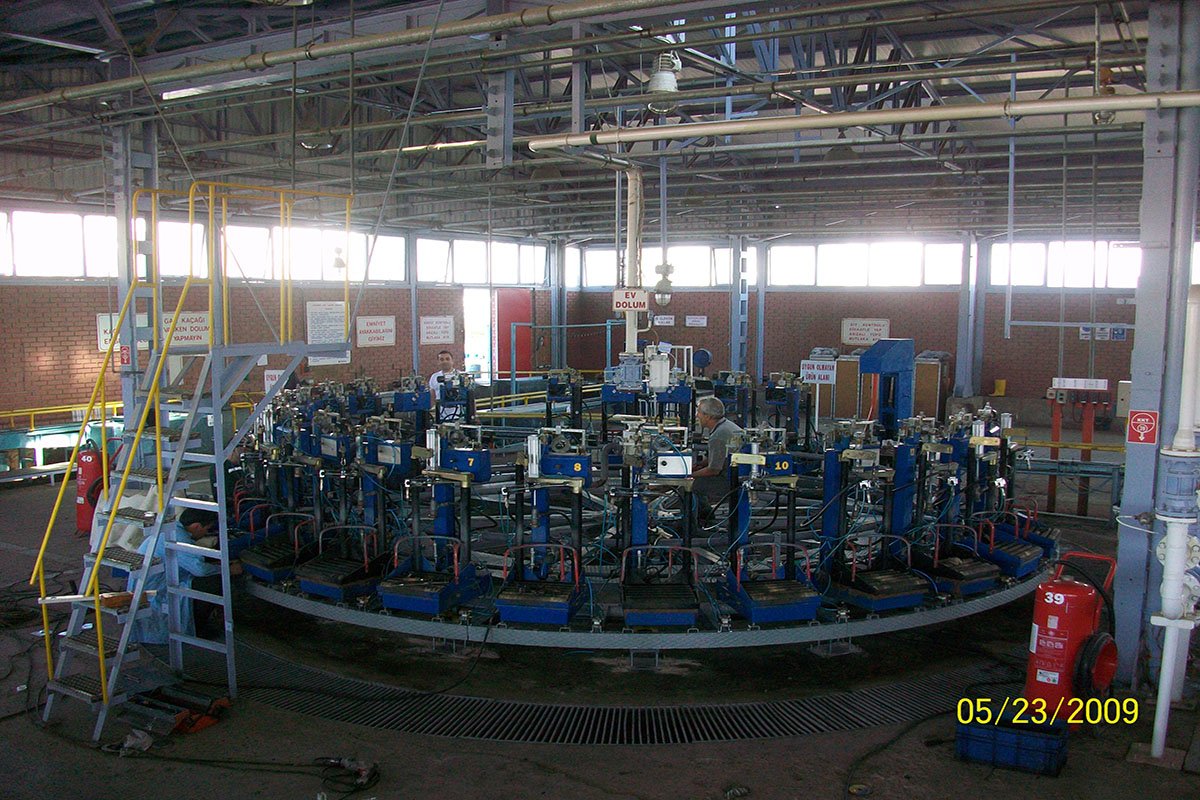

Kaya ;Carousel filling system is designed for the safe and effective filling of all types of LPG cylinders. It is produced in two different types, electronic and mechanical.

• The most efficient way to fill LPG cylinders
• Easy installation and use
• Tested secure system
• Requires minimal maintenance and service.
• High capacity filling up to 1,750 Cyl. per hour
• Fully automatic cylinder entry and exit
• Intrinsically high level of security
• Decentralized control units independent of PCs
• Fast coding or automatic reading of cylinder tare
• Control system efficiency: 94%

Features:

• LPG gas Pressure: 12- 17 bar / Max. Operating Pressure: 20 bar
• Air Pressure : 5-6 bar / Max. Air Pressure : 10 bar
• Exproof Power Supply Panel
• Adjustable Carousel Speed



Capacity:

• Carousel Filling Capacity with 6 Scales: 300-400 cylinders/hour
• Carousel Filling Capacity with 12 Scales: 600-700 cylinders/hour
• Carousel Filling Capacity with 18 Scales: 900-1000 cylinders/hour
• 24 Scale Carousel Filling Capacity: 1100-1200 cylinders/hour
• Carousel Filling Capacity with 30 Scales: 1400-1500 cylinders/hour
• Carousel Filling Capacity with 36 Scales: 1600-1900 cylinders/hour
