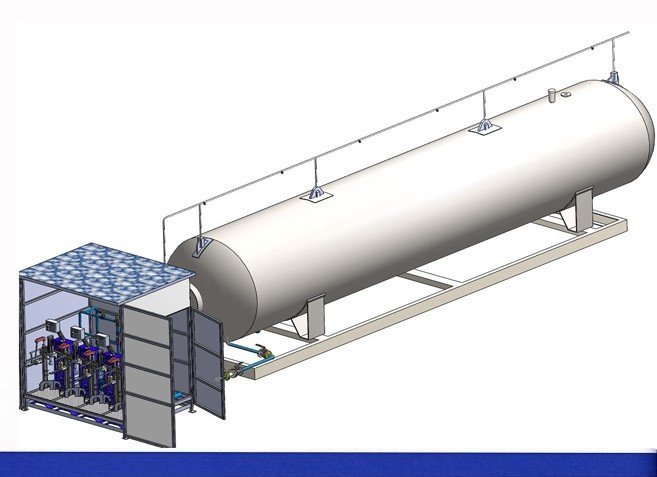

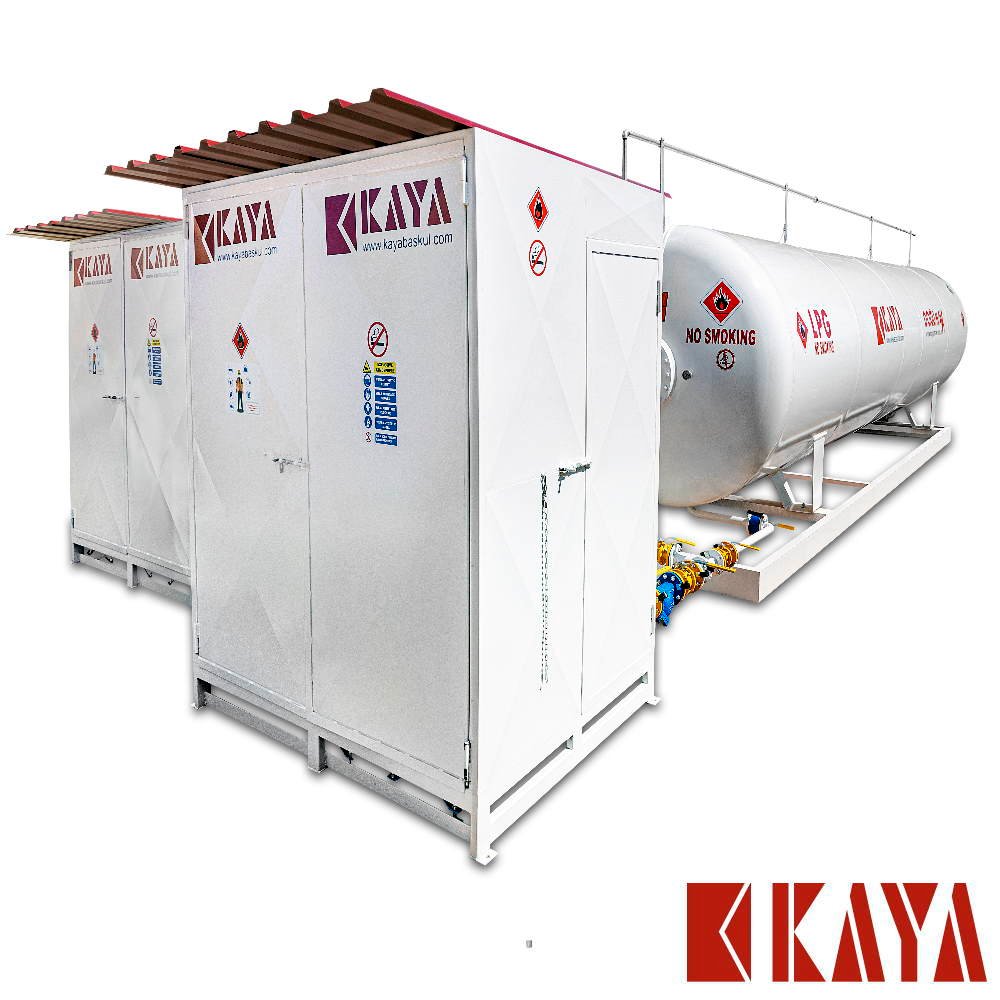

SKID FILLING SYSTEM

   SKID filling system; It is specially produced in order to operate LPG cylinders that are generally filled in remote areas and under difficult conditions. It was chosen because of its high mobility.

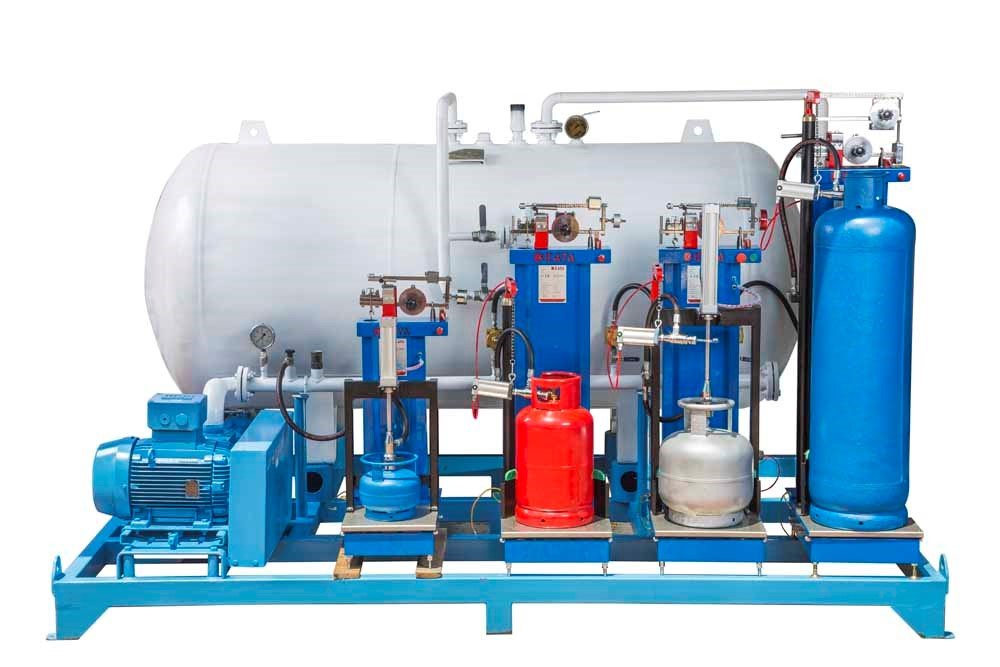

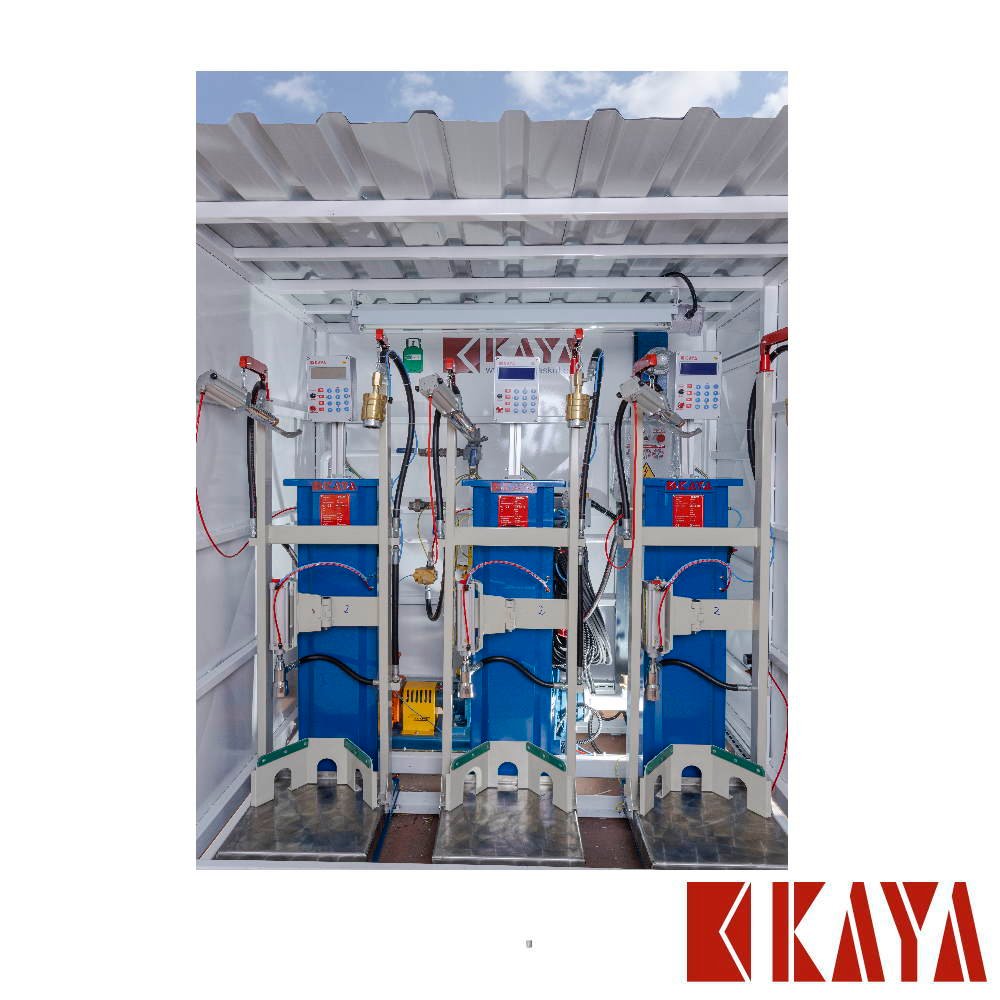

LPG filling scales are placed on the base according to the type of LPG cylinders to be filled. The tank volume changes according to the desired capacity. the upper part of the filling system can be optionally closed (shaded).

TECHNICIAL SPECIFICATIONS

• Tank Capacity: Between 5 m³ and 100 m³
• Tank Class: Class II (Gas)
• Products to be stored: LPG
• Operating Temperature: - 30 'C to +55 'C

GENERAL FEATURES

• Ready to use.
• Just connect the power line and turn on the switch.
• It is very easy to use.
• Contains all necessary equipment, items and connections.
• The tank is cylindrical and designed with the most durable and safest combination.
• Can be carried anywhere.
• All electrical accessories are ex-proof.
• Equipment and machines comply with EU standards and are CE certified.
• The tank is cylindrical and designed with the most durable and safest combination.
• High strength, fine grained, normalized "1Pc" series special pressure vessel steel in accordance with EN TSO 13445-5: 2014 is used in our tanks. The mechanical and metallurgical properties of the steel are tested and verified.
• According to the standards, elliptical cambered head is used in tension relieved tank covers.

Welds are made by certified welders in accordance with standards and materials.

• Production and quality processes are carried out by a qualified and experienced engineer, in compliance with standards and procedures, under the supervision of an independent inspection organization.

• Certified with competence and international competence in testing and controlling all welded joints
• After installation, all tanks are subjected to hydrostatic pressure test. After this test, the connections of the tank accessories are subjected to the air tightness test.
• The outer surfaces of the tank are sandblasted with SA quality 2.5 before painting.
• To offer the best product to its customers by using corrosion-resistant, long-lasting, high-quality two-component paint products of paint companies that have proven themselves in the international arena.
