Valve changing machine

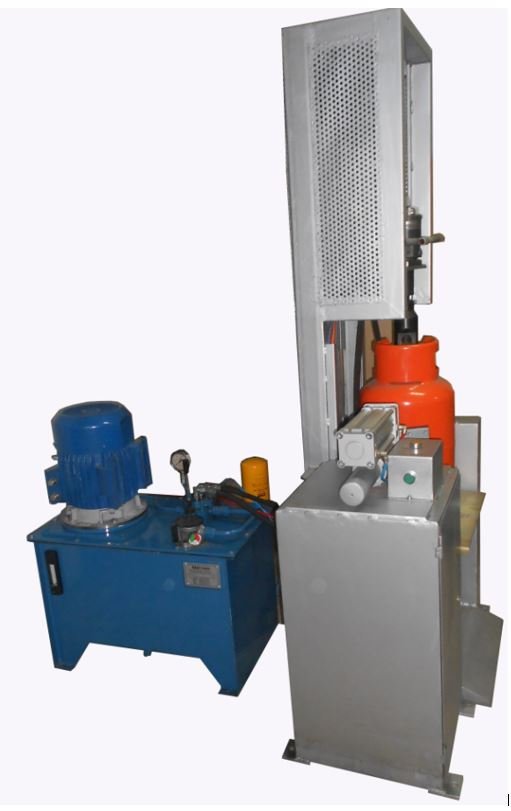

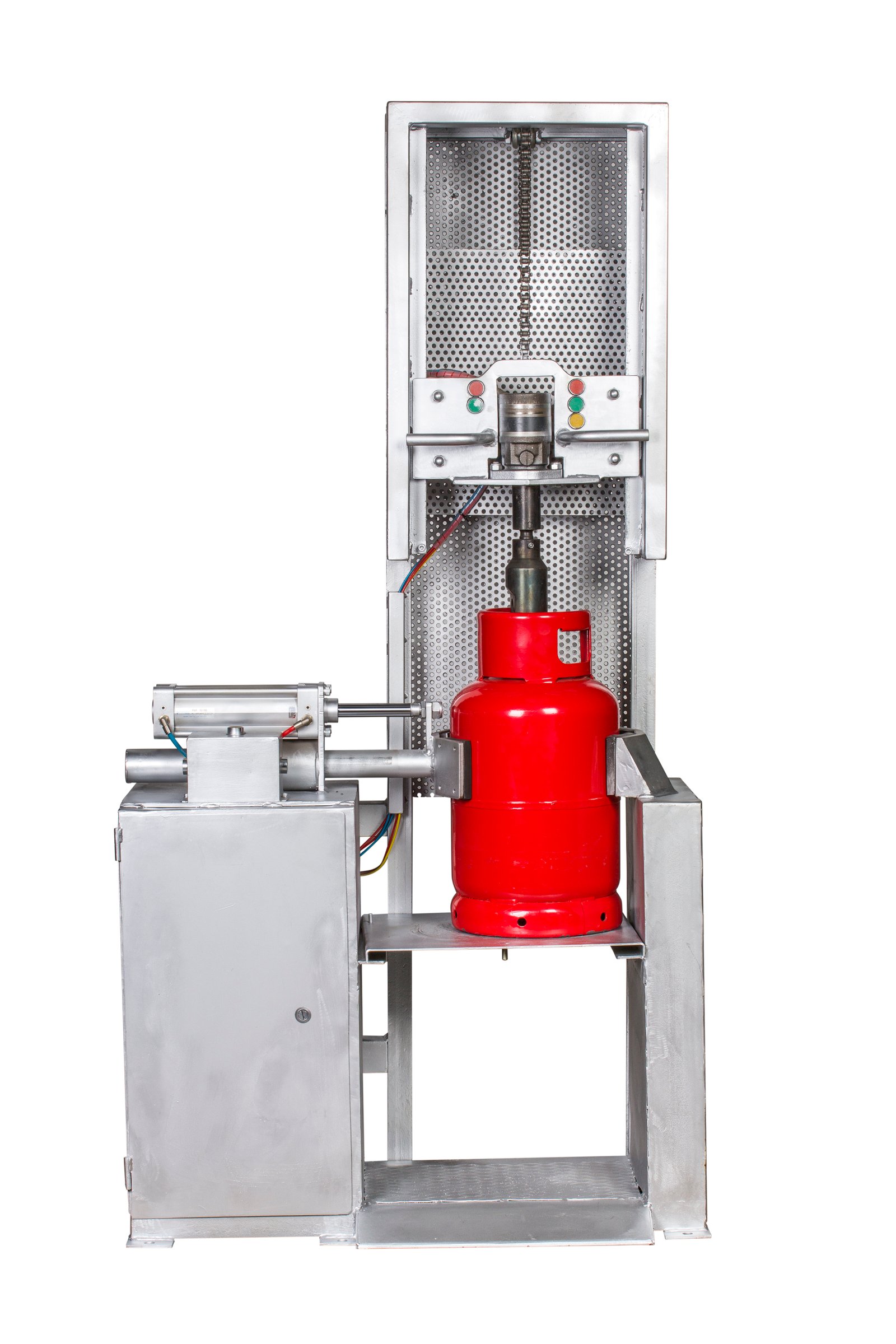

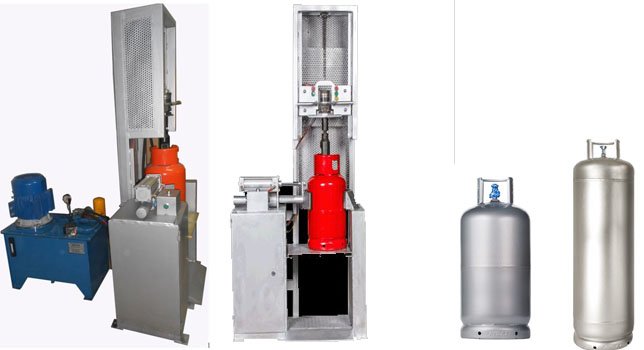

Rock valve changing machine is designed for semi-automatic and manual replacement of LPG cylinder valves quickly and safely.

•  Fast and efficient screwing and unscrewing of valves
•  Special keys for all valve types
•  Replacement of both center valves and screw valves
•  Means to prevent build-up of leaky and incorrectly filled cylinders
•  Ex-proof design for installation directly in the filling line or maintenance section

Earnings:

•  No need for hand tools
•  Minimum roller transport with in-line chain conveyor
•  Extra torque for positioning screw valves relative to the cylinder head
•  Quick change of private key when changing valves

Facilities:

•  Stand-alone unit or in-line manual machine on roller conveyor
•  Sequential semi-automatic machine on chain conveyor
•  Available in different heights
•  Manual height adjustment available
•  Extra control box to handle long rollers

Working Safety:

• Ex marking according to the ATEX Directive and applicable EN standards: II 2G Ex h IIA T4 Gb CE logo EX logo
• All equipment and machinery in the filling system are designed to operate in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 80079—36:2016.
• All equipment and machinery in the valve replacement system are designed and certified according to a certified ISO:9001 quality management system; moreover, it is designed according to all relevant requirements set out in the applicable EU Directives.
