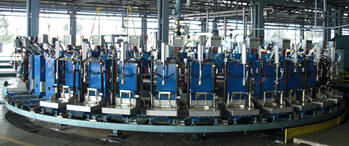

Kaya ;Carousel filling system is designed for the safe and effective filling of all
types of LPG cylinders. It is produced in two different types, electronic and mechanical.

The most efficient way to fill LPG cylinders
Easy installation and use
Tested secure system
Requires minimal maintenance and service.
High capacity filling up to 1,750 Cyl. per hour
Fully automatic cylinder entry and exit
Intrinsically high level of security
Decentralized control units independent of PCs
Fast coding or automatic reading of cylinder tare
Control system efficiency: 94%
Features:

LPG gas Pressure: 12- 17 bar / Max. Operating Pressure: 20 bar
Air Pressure : 5-6 bar / Max. Air Pressure : 10 bar
Exproof Power Supply Panel
Adjustable Carousel Speed

Capacity:

Carousel Filling Capacity with 6 Scales: 300-400 cylinders/hour
Carousel Filling Capacity with 12 Scales: 600-700 cylinders/hour
Carousel Filling Capacity with 18 Scales: 900-1000 cylinders/hour
24 Scale Carousel Filling Capacity: 1100-1200 cylinders/hour
Carousel Filling Capacity with 30 Scales: 1400-1500 cylinders/hour
Carousel Filling Capacity with 36 Scales: 1600-1900 cylinders/hour
