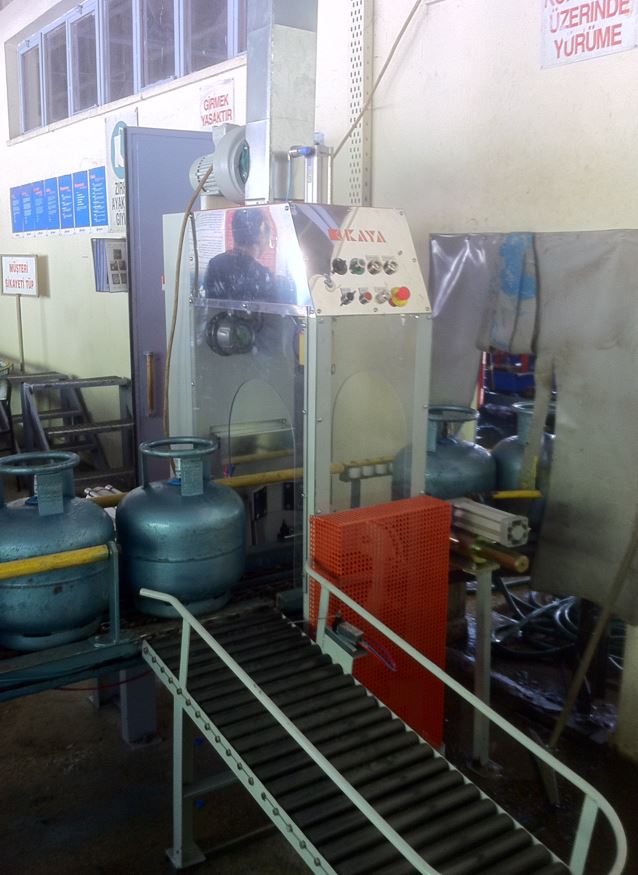

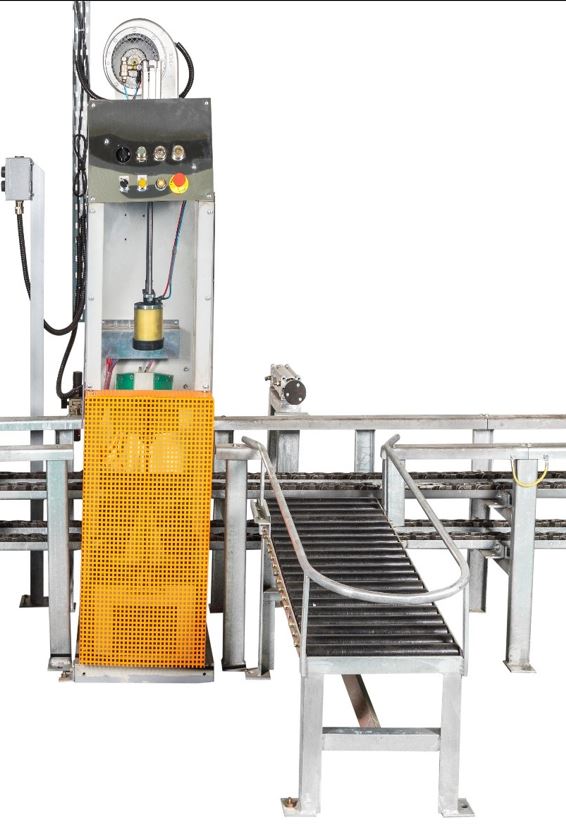

Electronic leak detectors and valve testers

• Kaya Baskul electronic leak detectors and valve testers perform tests on LPG cylinder valves. Cylinders are approved or rejected based on previously allowed values. It is automatically transferred out of the conveyor line.

• Eliminate human errors
• Provide maximum security
• Fully automated testing with same rank limit
• Detect any leaks around the valve
• Flexible for all cylinder diameters and heights
• Flexible for all types of valves
• Easy installation in existing facilities
• Minimum space requirements
• Earnings:

• Safe cylinders for your end users
• Manpower savings thanks to automatic sorting of cylinders with unapproved valves
• 100% tested – all full tubes are tested
• Easy-to-use calibration tools and procedure
• Easy setup and maintenance
• low power consumption
• Air service unit with extra filter to eliminate pollution from the pneumatic air supply
• Minimal maintenance.
• Ready for integration into a fully automatic filling system

Facilities:

• Test heads designed for all types of valves
• Test principle depending on valve type and test area on the valve: gas analysis principle (leak detectors) or pressure rise/fall principle (valve testers)
• Fixed on the floor, manually operated model for installation with chain conveyor or roller conveyor. Available with gas analysis principle. Manual height adjustment.
• Fully automatic model for in-line installation on a chain conveyor. Performs tests on all cylinders. Available with gas analysis principle or pressure brass/drop principle. Manual change of test head for testing different valves. One or two head machine. For a fixed cylinder height. Height adjustable manually or automatically
• Calibration and test equipment available on request

• Working Safety:

• • Ex marking according to the ATEX Directive and applicable EN standards: II 2G Ex h IIA T4 Gb CE logo EX logo
• • All equipment and machinery in the filling system are designed to operate in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 80079—36:2016.
• • All equipment and machinery in the leak control system are designed and certified according to a certified ISO:9001 quality management system; moreover, it is designed according to all relevant requirements set out in the applicable EU Directives.
